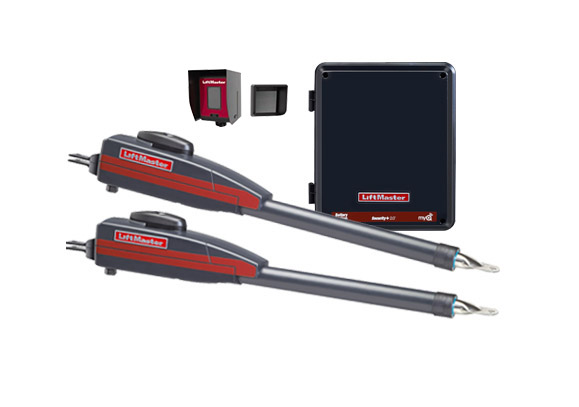

Liftmaster LA400PKGU 24VDC Residential Linear Actuator with Control Panel

Battery Backup

Secures and safeguards your property by providing up to 400 cycles or up to 97 days of standby power when the power is down.

Security+2.0®
Access your property quickly with Security+2.0® Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote control is used.

MyQ®
Securely control and monitor your Gate Operator from anywhere and get activity notifications through the MyQ® app.

P3 Motors
LiftMaster has designed its own purpose built motor to meet the exact requirements needed to open and close your gate.

Specifications

POWER 24VDC or solar power. 120/230V Single Phase (Standard control box).
ACCESSORY POWER 24VDC 500mA output. Switched and unswitched power.
MONITORED SAFETY INPUTS 3 Main Board, 3 Optional Expansion Board.
TEMPERATURE SPECIFICATIONS -4°F (-20°C) to 140°F (60°C).
UL USAGE CLASSIFICATION I, II, III, and IV.
GATE TRAVEL SPEED 90-degree opening in 15-17 seconds.

Construction

P3 MOTOR® 24VDC continuous-duty motor.
OPERATOR DUTY RATING 100 cycles per day.
WORM GEAR REDUCTION Precision machined all-metal gear drive.
OPERATOR WEIGHT Actuator arm 19 lbs. Standard control box 13 lbs.

Includes (2) 7Ah batteries

RECOMMENDED CAPACITIES: Rated for gates up to 16 ft. in length or weighing up to 850 lbs.
