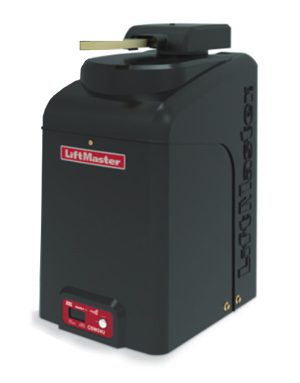

New 2016 UL 325 Gate Guidelines with smartphone capability. Liftmaster new frontier into the DC motor world. Having a DC motor allows for greater control not to mention solar capablities. The New CSW24V is a heavy duty DC operator that can handle 1,000,000 cycles in high-cycle, heavy-duty applications. A Battery Backup System provides uninterrupted access when the power is out; For gates up to 18 ft. long or 1,600 lbs.
Features
- Power Management System
- Supplies power when needed to operate the gate and conserves power when not in use
- Provides exceptional standby time and cycles on battery backup
- 7 days of standby time or 100 cycles on battery backup
- Fire department compliant: selectable settings allow gate to auto-open upon loss of AC power or battery depletion
- Advanced traffic management control includes Quick-close and Anti-tailgating functions
- Bi-part delay: choose from Standard Operation or Synchronized Close
- Simple-to-set electronic limit system maintains accurate gate position throughout gate travel
- High-density, UV-resistant polycarbonate two-piece cover for excellent heat and corrosion resistance
- Programmable auxiliary relays
- Plug-in loop detectors
- External obstruction sensing; complies with UL325 safety codes
- 5-year commercial warranty; 7-year residential warranty
Specifications
- 24VDC continuous-duty motor with soft start/stop
- Operator duty rating: continuous
- Power: 110V or 220V Single Phase
- Surge/spike protection
- Gate travel speed: 90-degree opening in 13-15 seconds
- Constructed with 1/4″ gold zinc-plated steel for rust prevention
