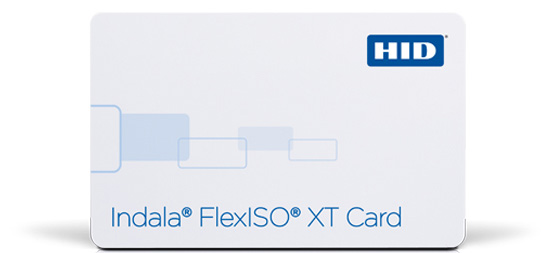

HID Indala FlexPass FlexISO XT Composite Proximity (125 kHz) Card, Imageable, Standard Flexpass Proximity Programmed (Low Frequency 125 kHz), Standard White Glossy Finish (Suitable for Video Imaging) Front and Standard White Glossy Finish with Indala Logo and Card Marking Back, Markings at Position 3/Standard Location Marking Position, No Slot Punch, Standard Magnetic Stripe (3-Track, Hi-Co, 4000 Oersted)

FlexISO® XT integrates Indala brand breakthrough FlexSecur® proximity technology within a card body designed to withstand the most extreme applications. Unique composite formulation enhances the structural integrity of the card, providing additional protection of the core electronics. The FlexISO® XT is particularly effective in applications that require magnetic stripe and/or barcode transactions.

The Indala FlexISO® XT Card can be programmed in the factory or in the ?eld using the Indala ProxSmith® Programmer and Toolkit with Wiegand, magnetic stripe and serial data formats. The FlexISO® XT can be used interchangeably with other Indala credentials on most systems and can be ordered with specified facility codes and ID numbers.

Exclusive FlexSecur® Security Technology
All HID Indala 125 kHz Proximity Cards feature FlexSecur® technology, which provides an added level of access system security through a verification process at the reader. Solely an HID Indala-brand feature, FlexSecur® screens out unauthorized cards prior to sending card data to the host system.

When customizing cards using Re-Transfer Printers that fuse images to the surface of the card by applying heat and pressure (such as the Fargo HDP5000) we recommend the use of composite cards, which are better able to withstand the higher application temperatures.

Key Features:

• Revolutionary Composite Materials – Resists warping caused by high-temperature application of polyester overlays by many dye-sublimation printers.
• Ideal for High Wear-and-Tear Environments – Such as university or factory settings.
• Lifetime Warranty – Although you may never need to use it, cost-effective FlexISO® XT cards are backed for life.
• ISO 7810/7811 Compliant
• The passive, no-battery design allows for an infinite number of reads, and is warranted for life against defects in materials and workmanship.
• PVC Card Surface Optimized for Dye Sublimation Printing
• Can be combined with a magnetic stripe, bar code, a multitude of smart chips, and MIFARE

Typical Maximum Read Range*
Linear/Arch/Curve/Wave Slim/Wallswitch Up to 4″ (10 cm)
Linear Classic Up to 5″ (12 cm)
Arch/Wave Mid-Range Up to 12″ (30 cm)
Arch Long Range Up to 26″ (66 cm)

Dimensions
3.38″H x 2.12″W x 0.03″T
(86 mm x 54 mm x .76 mm) nominal

Card Construction
Biaxially Oriented Polyester (PET) Composite Card

Warranty
Lifetime

*Dependent on local installation conditions.
