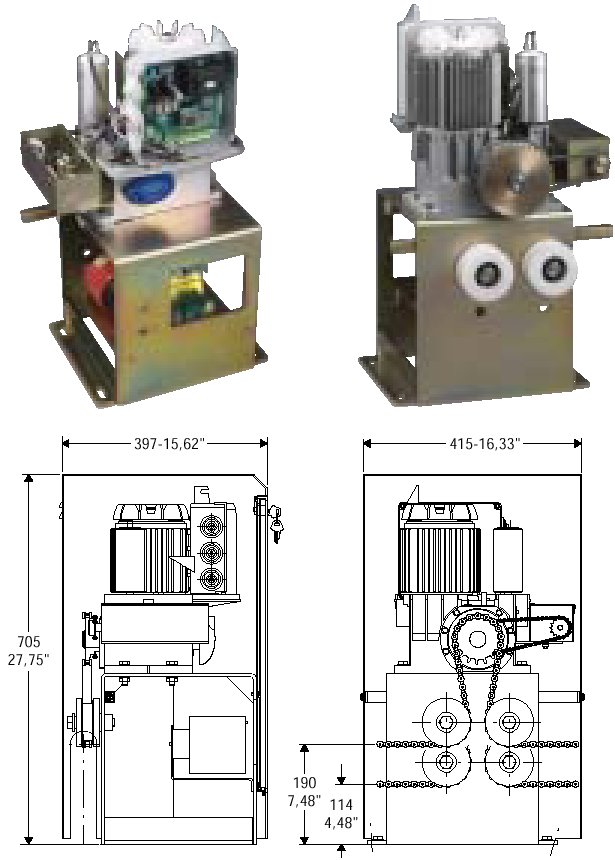

ICARO C Chain Driven Slide Gate Operator (picture above shown without cover)
Automation for chain driven sliding gates weighing up to 1700 lb (800 kg) gated communities and commercial building Maximum performance and continuous service offered by ICARO C irreversible gearmotor. Parameter autoset option for braking, torque and anti-squash functions. Maximum safety with anti-squash protection, thanks to a microprocessor which guarantees innovative torque control and obstacle detection. Diagnostic and statistical functions through the display. Control board preset for management by means of the UNIPRO universal programmer. Rolling code receiver with 64 codes inside the control board.
Technical features
Operator ICARO C
Power supply 120 V ± 10%, 60 Hz
Power 750 W (1HP)
Thermal protection integrated
Max. gate weight 1700 lb (800 kg)
Max. gate opening 40ft (12 mt)
Pinion pitch ASA 40 Z.32
Leaf speed 1 ft/sec. (18 mt/min.)
Impact reaction electronic clutch with encoder
Manual release mechanical knob release
Control panel LEO MA
Type of limit switch electromechanical
Environmental conditions from 5°F to + 140°F (from -15°C to +60°C)
Duty cycle Continuous
Operator weight 137 lb (62 kg)
Dimensions see below
