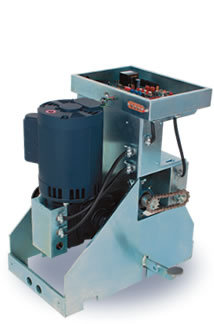

All-O-Matics new SL-150 DC slide gate operator comes equipped with a true integrated long term battery backup. Like all of All-O-Matics DC gate operators the SL-150 DC uses an industry first Brushless DC motor, witch means zero maintenance and high precision. The SL-150 DC comes equipped with a built in loop rack, slow start/stops algorithm, heavy duty frame, emergency mechanical foot pedal release, and is manufactured to last a life time. The SL-150 DC offers up to weeks of uninterrupted operation in the event of a power failure. Unlike other currently available “open and die” single cycle battery backups, in the event of a power failure the SL-150 DC seamlessly switches from AC power to backup mode and runs off of its included (2 – 8Ah) batteries. For heavy slide gate applications there is no tougher more reliable option. All All-O-Matic gate operators are covered by our 5/7 Year Manufacturers Warranty.
GENERAL SPECIFICATIONS
UL 325 & UL 991 Compliant |
Warranty |
Full 7 Year Residential, 5 Year Commercial |
Motor |
24 VDC Brushless Motor ½ HP or 1HP – Continuous Duty Cycle |
Duty Cycle |
Continous |
Power Options |
120/220 VAC Single Phase |
Gear Box Ratio |
30:1 with Internal Clutch |
Cover |
Rotationally Molded – Indestructible |
Dimensions |
W: 15” – L: 9.5” – H: 25” |
Maximum Gate Length |
60 Feet |
Maximum Gate Weight |
½ HP Model 3000 lbs, 1 HP Model 4000 lbs |
Gate Speed |
12 inches per sec |
Operator Weight |
150 lbs |
Emergency Release Options |
Mechanical Foot pedal Release |
Battery Backup |
Integrated Full Time Battery Backup
Capable of up to 100 cycles on a 1000lbs Gate
Battery: Two 8 Ah Batteries 12VDC |
Solar Capabilities |
12VDC or 24VDC Solar Panel Input |
